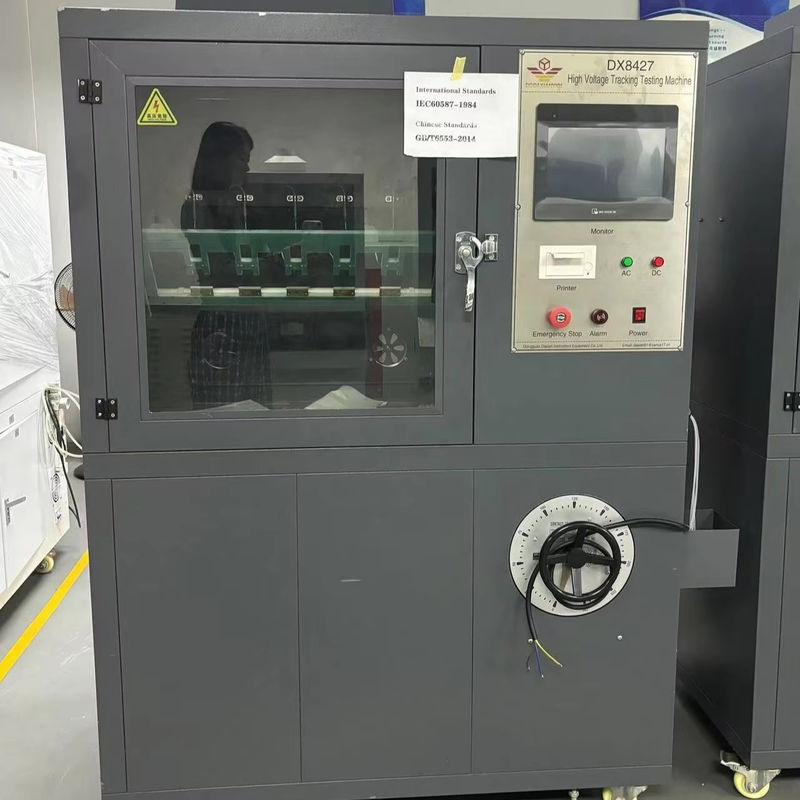

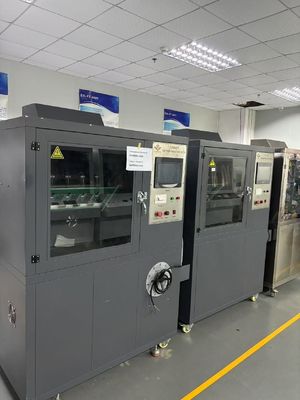

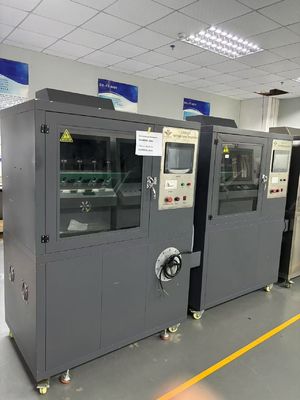

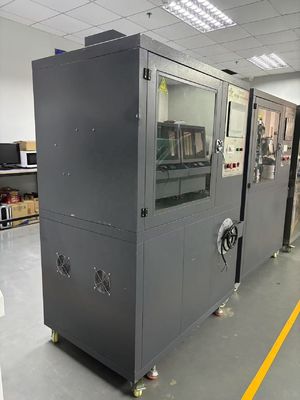

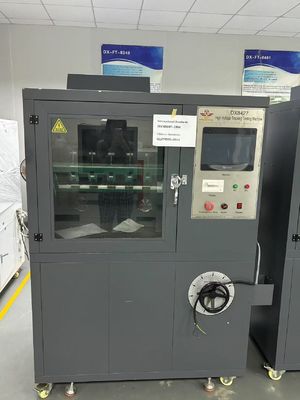

DX8427 High Voltage Leakage Trace Tester

Name: DX8427 High Voltage Leakage Trace Tester
Brand: DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD
Price: 2.00 USD
Availability: InStock

Todos los productos

Equipo de prueba del fuego
(287)

Equipo de prueba de la inflamabilidad
(134)

equipo de prueba de los materiales de construcción
(64)

Lab Testing Machine
(76)

Insulation Testing Machine
(110)

equipo de prueba plástico
(131)

Equipos de pruebas de caucho
(100)

equipo de prueba del alambre
(240)

Máquina de la prueba del PWB
(5)

Máquina de prueba ignífuga
(13)

Cámara de prueba ambiental
(61)

Cámara de la densidad de humo
(14)

Máquina de prueba tracción
(22)

Probador de la máscara
(42)

Equipo de prueba de los juguetes
(18)

Metro de distancia del laser
(10)

Equipo de la automatización industrial
(45)

Certificación

CHINA DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD certificaciones

Comentarios de cliente

Antes de que compre la máquina, veo a nuestro socio utilizar su máquina, después de la recibo, toda soy bueno. las gracias, esperanza hacen trato la vez próxima también.

—— Voluntad máxima

Me preocupo al principio alrededor si puede su compañía entrega a tiempo, él resulto a su compañía soy bueno, ningún retraso, colaboración agradable de A.

—— Peter Huang

¡Cooperación agradable! Apreciamos para la ayuda buena de su compañía en nuestros proyectos. Servicio muy bueno.

—— Sr. Hussain

Cita profesional, tecnología profesional, de modo que recibamos mercancías oportunas, empresas dignas de confianza. ¡Esperanza podemos todavía cooperar la vez próxima!

—— Sr. Paul Garry

Estoy en línea para chatear ahora

DX8427 High Voltage Leakage Trace Tester

Ampliación de imagen : DX8427 High Voltage Leakage Trace Tester

Datos del producto: Pago y Envío Términos:

Precio:	CN¥3,571.45/sets >=1 sets

Contacto

DX8427 High Voltage Leakage Trace Tester

descripción

Garantía:	1-5Years	Soporte personalizado:	OEM, ODM, OBM, reengineering del software
Lugar de origen:	Guangdong, China	brand name:	DAXIAN
Potencia:	6 000 W	Voltaje:	Las demás:
Tipo:	Máquina de ensayo	Aplicación:	pruebas de plástico, pruebas de laboratorio
Clase de protección:	Protección IP67	Eléctrodo:	0.5 mm de espesor
capacidad:	5KVA	Tiempo de prueba:	6-10 horas
Regulador de voltaje Salida:	Ajustable desde 0 a 250 V	Material:	Acero Inoxidable
Precisión de caída:	00,5%	Estabilidad del voltaje:	± el 1%
Voltado de ensayo:	Ajustable stepless 100V-6000V	Válvula de salida:	AC/DC (cambiable)
Distancia entre electrodos:	50.0 mm ± 0.1
Resaltar:	DX8427 Leakage Trace Tester , High Voltage Leakage Trace Tester , Leakage Trace Tester DX8427

Product Description

Company Profile

Dongguan Daxian Automation Instrument and Equipment Co., Ltd., founded on July 5, 2012, is located in Chang'an Town, Dongguan City, the Pearl River Delta, Guangdong Province, with developed transportation. It is a private enterprise engaged in the production, design, development and sales of test equipment and instruments. After years of development, the company has established a strong professional research and development team, committed to the research and development of test instruments and non-standard automation equipment.

Packing & Delivery

Selection of Packaging Materials： Selection of Packaging Materials 1. Use sturdy and durable packaging boxes to prevent equipment damage caused by collision or compression during transportation. 2. The interior is filled with shockproof materials, such as foam, air cushion or pearl cotton, to ensure that the equipment will not shake in the packaging box. 3. For fragile or sensitive components (such as electrodes, display screens, etc.), package and secure them separately to avoid damage during transportation.

Mode of Transport： 1. Prioritize choosing professional logistics and transportation companies to ensure safety and reliability during transportation. 2. For long-distance transportation, land or sea transportation should be used to avoid the potential impact of air pressure changes on equipment during air transportation.

Specification

Item	Value
Warranty	1-5Years
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	China
	Guangdong
Brand Name	DAXIAN
Model Number	DX8427
Power	Electronic
Electrode	0.5mm thick
Material	Stainless steel
Distance between electrodes	50.0mm ± 0.1
Test voltage	100V-6000V stepless adjustable
Voltage regulator Output	Adjustable from 0~250V
Capacity	5KVA
Test time	6 hours
Dropping accuracy	0.5%
Voltage stability	± 1%

Control device: Adopting Siemens PLC+Taiwan Weinview touch screen control, precise control, simple operation, fully humanized
design, automatic report generation after the test, and panel thermal printer can print test results in a timely manner.

Number of test groups: Five groups (during the test, one pump controls one group of droplets, and the testing process does not affect each other, which is not commonly seen in the market as one pump controls five groups) (can be tested separately or together).

Dropping device: using a Ralph precision peristaltic pump, with a flow range of 0.00185-20
milliliters per minute, a working speed of 0.1-50 revolutions per minute, and a flow accuracy error of less than 0.5%.

Customer Photos

After Service

1. Ensure the high quality of the product.

2. Packaging can be done according to customer requirements and pictures can be attached
before shipment.

3. Provide the fastest response to maintenance and assistance requests from users. After the user submits a maintenance request,ensure to provide professional technical support in the shortest possible time and in the fastest way possible.

4. Our engineers provide professional after-sales service.

5. The warranty period is 12 months. During the warranty period, we are responsible for providing free maintenance, upkeep, and replacement of damaged and defective parts (under normal use) for the user's equipment. After the free warranty ends, service fees will be charged at your discretion.

FAQ

1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Fire Testing Equipment,Construction Materials Testing Equipment,Plastic Testing Equipment,Wire Testing Equipment,Environmental Test Chamber

3. why should you buy from us not from other suppliers?
Advanced technology research and development capabilities, high-quality product manufacturing and testing capabilities, rich industry experience and professional knowledge, as well as good customer relationships and reputation.

4.How about the payment term?
A: T/T, by cash, western union, or L/C.

5.What are the test methods for evaluating the resistance to electrical traces and corrosion of electrical insulation materials used under harsh environmental conditions？

Method 1: Constant voltage tracing method;

Method 2: Stepwise voltage tracing method.
