Flammability Testing Equipment Manufacturers EN 13823 Single Burning Item SBI Test Apparatus

Single Burning Item (SBI) consists of

• Trolley, which mounts the specimen, with primary sand-box burner on the corner.

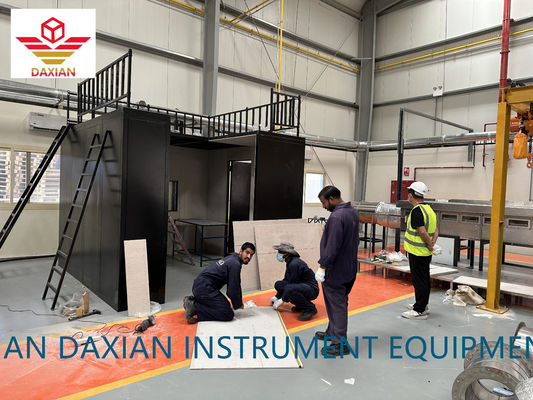

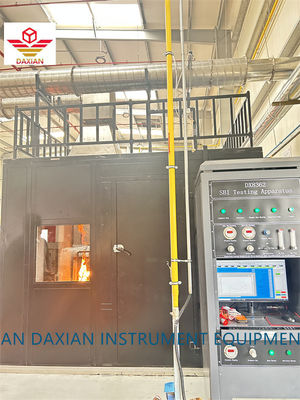

• Test room, with trolley position frame, secondary sand-box burner on the support frame. A proper observation window should be on side of the wall. Hood with baffles and collector fitted to the room above the frame.

• Stainless steel ducting, with instrumented section, which has combustion gas sampling probe, bi-directional probe, thermocouples, and light attenuation system for smoke measurement.

• Gas analysis rack, with gas sampling system, gas analysis sensor, and data acquisition system.

• Combustion gas sampling system, consisting of 3-stages filters (accuracy up to 0.5 microns), refrigerated cold trap, diaphragm pump, moisture trap.

• Propane mass flow controller for sand-box burner, accuracy up to ±1.5% F.S.

• Oxygen analyzer, paramagnetic type with the range of 0 to 25%. SERVOMEX® or ABB® gas analyzer is optional.

• Carbon dioxide analyzer, NDIR type with the range of 0-1% & 0-10%. SERVOMEX® or ABB® gas analyzer is optional.

• Data acquisition system, maximum record the data 50 times per second.

• Operation software, with the functions of the standard test program, sensor calibration, auto system calibration, status monitoring, and report management.



  Advanced Options

• Dual test room/trolley with one control and analysis system.

• Connect to Cone Calorimeter for analysis rack sharing.

• Welcome to visit our factory for sightseeing!
